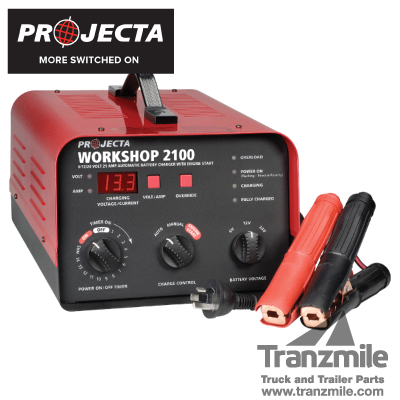

Projecta Battery Charger - 6/12/24V, Auto & Manual, Up To 1200CCA
Brand: Projecta
Min Order: 1
Description
Designed for the most demanding environments such as heavy duty transport and agriculture. Delivers ample power, sturdy construction and various charging options.
This battery charger is rated up to 1200CCA sized batteries. For larger batteries please see the HDBC35.
SPECIFICATIONS | |||||||
---|---|---|---|---|---|---|---|
PART NO |
HDBC20 |
||||||
TYPE |
2 Stage Automatic & Manual |
||||||
INPUT |
240V, 50Hz, 324W |
||||||
OUTPUT |
12.0A at 6.0V |
||||||
ENGINE START |
5 cycles – 5 min on, 5 mins off |
||||||
CHARGE CONTROL |
|
||||||
APPROVALS |
Electrical Safety, EMC |
||||||
L.E.D. CHARGE INDICATION | |||||||
RED LIGHT ON FLASHING |
Overload |
||||||
SECOND RED LIGHT ON |
Power on |
||||||
SECOND RED LIGHT FLASHING |
Reverse connection |
||||||
AMBER LIGHT ON |
Charging |
||||||
GREEN LIGHT ON |
Fully charged |
||||||
L.E.D SCREEN |
Voltage / Current |
||||||
BATTERY CHARGE TIMES | |||||||
HDBC20 |
VOLTAGE |
BATTERY SIZE |
CHARGE TIME |
||||
AUTOMOTIVE |
6, 12, 24V |
450–1200CCA |
6–15 hrs |
||||
MARINE |
6, 12, 24V |
600–1400MCA |
8–18 hrs |
